The full kit option consists of a kit of parts to build you 3D Scanner and PDF instructions.
With access to our private support forums.
Items not included: (please note fully built version includes these items).
- 1 x Raspberry PI 3B+
- 1 x PI Camera V2
- 1 x PI Camera focus adjuster
all the above are available from the PI Hut and many others.
Tools required:
- 1 x 2.5mm Allen key
- 1 x 2mm Allen key
- 1 x 5.5mm spanner
- 1 x Medium cross point screw driver
- 1 x Small cross point screwdriver
- 1 x Small electrical flat blade screwdriver
- 1 x Snips
Optional tools:
- 1 x Set of small files
- 1 x Hot glue gun
Kit Contents:
- 1 x PC Scanner Software & Editor Software Inc. Licence
- 1 x Scanner Software Inc. Licence
- 1 x Full Set of .STL files for 3d Printing
- 1 x Full Set of .SVG files for Cutting
- 1 x SD Card to USB adapter
- 1 x SD Card 16GB
- 1 x Power Supply UK Plug
- 1 x PSU Socket
- 1 x 100cm PI Camera V2 Ribbon Cable
- 1 x Belt pulley wheel
- 1 x Belt GT2 760
- 2 x Blue line lasers
- 3 x End stop micro switches
- 6 x White Leds frosted 5mm top hat
- 1 x Power Led
- 1 x Activity Led

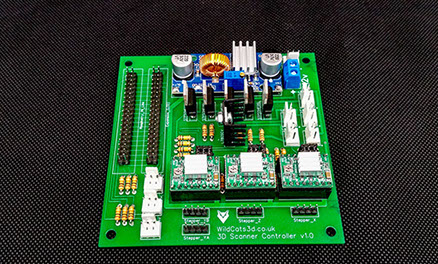

- 1 x WildCats3D Controller Board
- 1 x 40 Way Ribbon Cable
- 4 x Stepper Motors
- 2 x Z Axis Linear shafts
- 1 x X Axis Linear shaft
- 2 x 20mm Cable Chains
- 1 x 10mm Cable Chain
- 1 x 40mm fan
- 3 x Motor Couplers 5mm to 8mm
- 4 x Z Axis 6mm Stainless steel rods
- 2 x X Axis 6mm Stainless steel rods
- 9 x 6mm Linear Bearings
- 1 x Light-box Sealing Tape
- 1 x Fixings Pack (Nuts, Bolts, Screws etc)
- 1 x Full set of printed parts
- 1 x Full set of cut parts
Included 3D printed parts
Included cut plastics for light shield
Included cut plastics for 3D scanner chassis
Completed kit: you will receive all the hardware shown except as stated above
